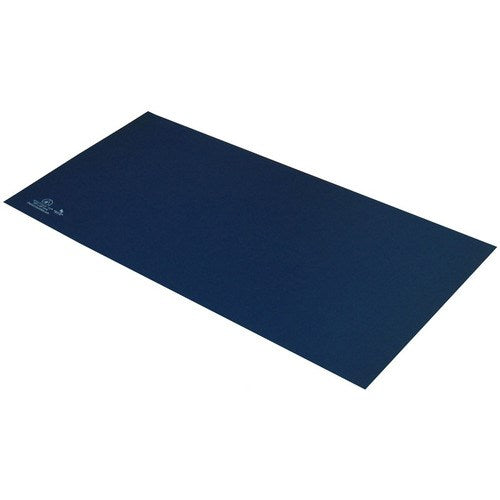

The Desco 66445 Statfree T2 Plus Dissipative Dual Layer Rubber Cut Mat, Dark Blue, Oil Resistant, .06 in. x 24 in. x 36 in., provides a worksurface that does not generate a static charge and will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface. The mat featues a nitrile rubber oil resistant compound material, which may be used in soldering applications with flux and other chemicals; it is designed to limit oil absorption, improving electrical and physical properties throughout the lifespan of the material. The top layer of the mat meets the ANSI/ESD S20.20 worksurface required limit as well as the recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. The dedicated conductive bottom layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mat to be used with ESD workstation monitors.

Desco 66445 Dissipative 2-Layer Rubber Cut Mat Highlights:

• Meets ASNI/ESD S20/20 work-surface required limit and the recommendation of ANSI/ESD S4. 1 for contact with ESD susceptible items
• Ultraviolet (UV) stabilizer additives to stabilize color retention, ensure ESD performance over time, and eliminate surface layer deterioration/cracking when the product is flexed
• Provides tracking information for lifespan of the product to ensure quality control
• Lead-free and RoHs compliant
• Nitrile Oil Resistant Compound
• Laser Engraved with ESD protective symbol, specs, and manufacturer information
• Conductive (<1 x 106 Rtt) Bottom Layer

Desco 66445 Dissipative 2-Layer Rubber Cut Mat Specs:

• Brand: Desco
• SKU: 66445
• Color: Blue
• ESD-Safe: Yes
• Product Type: Dual Layer Rubber Cut Mat
• Material Properties: DissipativeConductive
• Dimensions: .060" x 24" x 36'
• Dissipative (1 x 106 to <1 x 109 ohms Rtt) Top Layer
