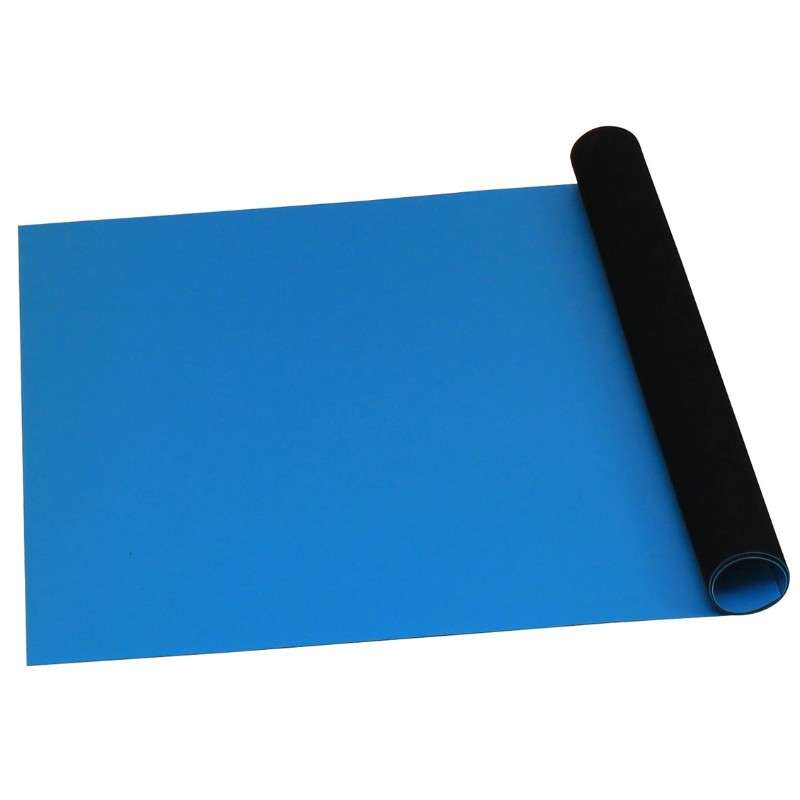

Worksurfaces mats must be properly grounded to remove ESD charges. Additional lot coding information is marked on the bottom (black conductive) side of the materialThe Desco 66412 is a 0.060” x 24” x 20’ dissipative dual layer rubber roll mat, designed with a high-strength nitrile rubber compound to withstand abrasion, stretching, and tearing. The dissipative dual-layer rubber mat dose not generate a static charge but furnishes a controlled worksurface from any discharge rate from conductors placed on its surface. The 66412 Statfree T2 dissipative dual layer rubber mats are non-humidity dependent. They supply a consistent electrical performance without regard to ambient humidity and can be used in soldering applications like flux and other chemicals.

Desco 66412 Blue Dissipative 2-Layer Ruber Mat T2 Plus Highlights:

• Dissipative Dual Layer ESD Worksurface provides a worksurface that does not generate a static charge and will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface1.
• Dissipative (1 x 106 to <1 x 109 ohms Rtt) Top Layer meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items
• Conductive (<1 x 106 Rtt) Bottom Layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the material to be used with ESD workstation monitors
• Ultraviolet (UV) Stabilizer Additives stabilizes color retention, ensures ESD performance over time and eliminates surface layer deterioration resulting in cracking when the product is flexed
• Laser Engraved With ESD Protective Symbol, Specs, and Manufacturer Information2 identifies ESD protective product for control & auditing purposes
• Lead-free RoHS compliant

Desco 66412 Blue Dissipative 2-Layer Ruber Mat T2 Plus Specs:

• Brand: Desco
• SKU: 66412
• Product Type: Dual Layer Rubber Mat Roll
• Material Properties: DissipativeConductive
• Color: Blue/Black
• Dimensions: .060" x 24" x 20'
• Number of Layers: 2
