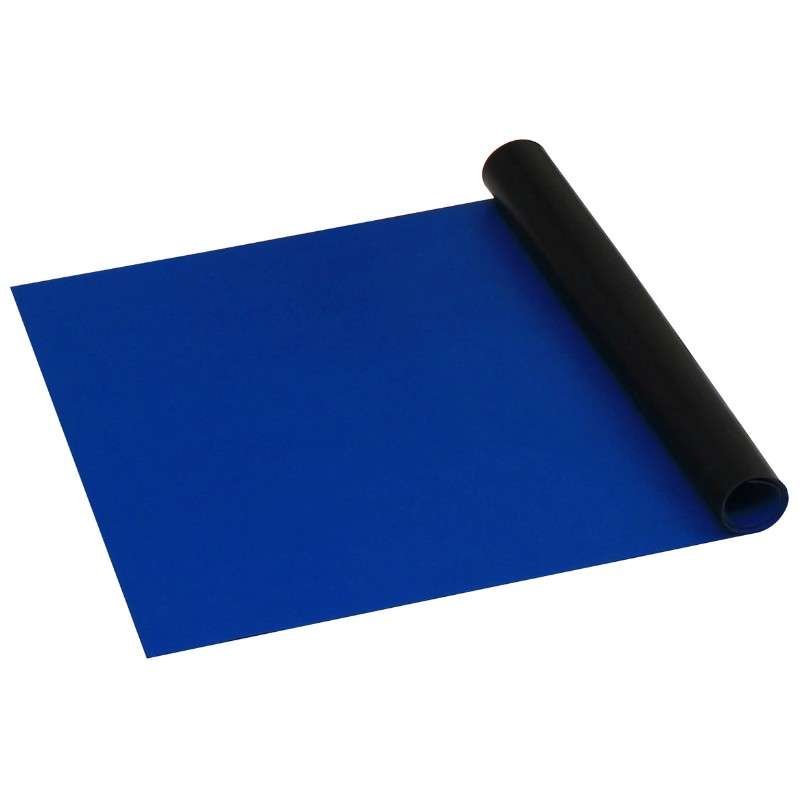

The Desco 66204 Dissipative Dual Layer Rubber Roll, Dark Blue, .060 in. X 24 in. X 50 ft., provides reliable path to ground and eliminates static charge generation as a worksurface table mat, shelf liner, and cart liner. The top layer of the mat meets the ANSI/ESD S20.20 worksurface required limit as well as the recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. The dedicated conductive bottom layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mat to be used with ESD workstation monitors. The mat is heat and chemical resistant, allowing it to be used with a soldering iron, flux, and other chemicals.

Desco 66204 Dissipative Dual Layer Rubber Roll Highlights:

• Made from dissipative dual layer rubber material
• Provides reliable path to ground
• Eliminates static charge generation as a worksurface
• Dark blue color top dissipative layer: 1 x 106 to < 1 x 109 ohms Rtt
• Meets ANSI/ESD S20.20 worksurface required limit
• Meets recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items
• Black conductive bottom layer: < 1 x 106 ohms Rtt
• Reduces resistance to ground (Rtg) from top of surface to groundable point ground
• Allows mat to be used with ESD workstation monitors
• Heat and chemical resistant
• May be used with soldering iron, flux, and other chemicals

Desco 66204 Dissipative Dual Layer Rubber Roll Specs:

• Brand: Desco
• SKU: 66204
• Series: 66200
• Product Type: Table Mat Roll
• Material Properties: Conductive; Dissipative
• Color: Dark Blue; Black
• Dimensions: 50 ft x 24 in x 0.06 in
• Length: 36.0 in, 50ft
• Width: 12.0 in, 24in
• Height: 12.0 in
• Thickness: 0.06in
• Number of Layers: 2
• Decay Time: <0.01s
• Standards Met: ANSI/ESD S20.20, ANSI/ESD S4.1
