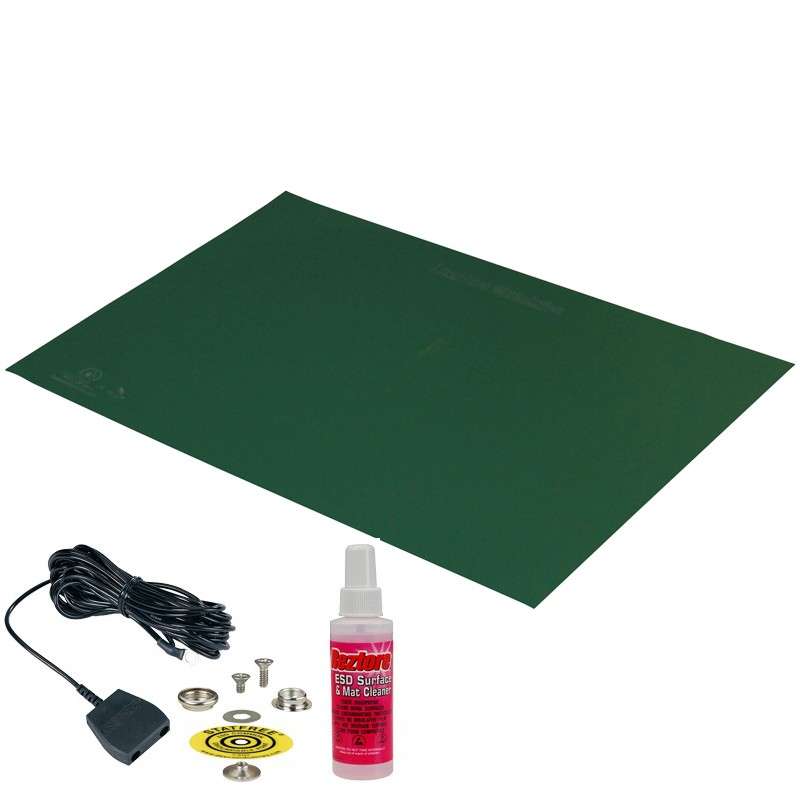

The Desco 66057 Statfree T2 Dissipative Dual Layer Rubber Mat Kit, Green, .060 in. X 24 in. X 36 in., provides a worksurface that does not generate a static charge and that will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface. The top layer of the mat meets the ANSI/ESD S20.20 worksurface required limit as well as the recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. The dedicated conductive bottom layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mat to be used with ESD workstation monitors. The mat features a high strength nitrile rubber compound, which is designed to withstand abrasion, stretching, and tearing and may be used in soldering applications with flux and other chemicals. The mat also includes Ultraviolet (UV) stabilizer additives, which stabilize color retention, ensure ESD performance over time, and eliminate surface layer deterioration when the product is flexed.

Desco 66057 Statfree T2 Dissipative Dual Layer Rubber Mat Kit Highlights:

• Made from dissipative dual layer rubber material
• Provides worksurface that does not generate static charge
• Controls discharge rate from all conductors (including ESD susceptible items) that are placed on the surface
• Green color top dissipative layer: 1 x 106 to < 1 x 109 ohms Rtt
• Meets ANSI/ESD S20.20 worksurface required limit
• Meets recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items
• Black conductive bottom layer: < 1 x 106 ohms Rtt
• Reduces resistance to ground (Rtg) from top of surface to groundable point ground
• Allows mat to be used with ESD workstation monitors
• Electricals will not drift during lifespan of mat
• High strength nitrile rubber compound withstands abrasion, stretching, and tearing
• Suitable for use in soldering applications with flux and other chemicals
• Mat formula includes Ultraviolet (UV) stabilizer additives:
• Stabilizes color retention
• Ensures ESD performance over time
• Eliminates surface layer deterioration and cracking when product is flexed
• Non-humidity dependence provides consistent electrical performance regardless of ambient humidity
• Lot traceability information ensures quality control and provides tracking details for lifespan of product

Desco 66057 Statfree T2 Dissipative Dual Layer Rubber Mat Kit Specs:

• Brand: Desco
• SKU: 66057
• Trade Name: Statfree T2
• Type: Mat
• Material: Rubber
• Width: 24 in
• Length: 36 in
• Thickness: 0.06 in
• Color: Blue
• Reusability: Reusable
• Protective Properties: Abrasion-Resistant Conductive Heat-Resistant Solvent-Resistant Static Dissipative
• Includes: 14213 - Common Point Ground Kit Snap
• Standards Met: ANSI/ESD S20.20 ANSI/ESD S4.1 RoHS 2002/95/EC
• Additional Information: Color: Dark Blue
• Dimensions: .060 in X 24 in X 36 in
