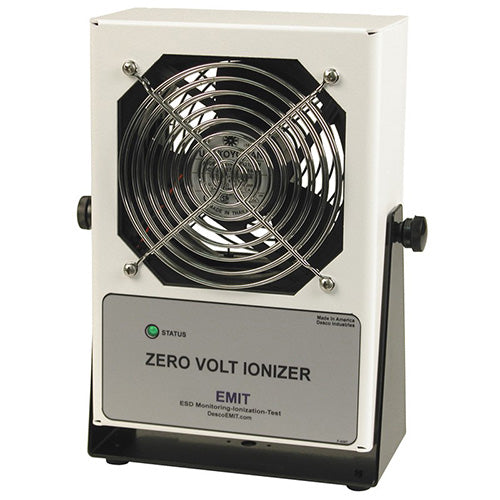

The Desco 50690 Zero Volt Benchtop Ionizer, 115VAC is a compact and lightweight steady state DC auto-balancing benchtop worksurface ionizer with integrated closed-loop feedback. The unit is normally placed at one end of the workbench or area to be neutralized. It may also be mounted to a wall or shelf. The 50690's neutralization discharge time will be best approximately 12" to 48" directly in front of the unit and will increase as the distance from the unit increases. Ionizers are useful in preventing electrostatic charge generation, electrostatic discharge, electrostatic attraction, as well as preventing equipment latch-up.

Desco 50690 Zero Volt Benchtop Ionizer Highlights:

• Single fan steady-state DC ionizer for 16" x 24" coverage area
• Neutralizes electrostatic charges on insulators and ungrounded conductors within the coverage area
• Less than 2 seconds discharge time with ±3 V balance (offset voltage) at 12"
• Meets the required limits for ionization use in electronics manufacturing areas per ANSI/ESD S20.20 and ESD TR53
• Sealed plenum air flow prevents contamination from being introduced to the workstation
• Auto-Feedback system (audible and visual alarm) powers down automatically and alarms should the supply voltage drop
• Selectable input voltage configures to 120VAC or 220VAC input voltage via internal jumpers
• Low, Medium and High fan speeds (50-100 CFM) maintains optimum
• performance at all speeds and allows for use with airflow sensitive applications
• Powder coated enclosure minimizes debris and corrosion for use in clean or sensitive areas
• North American power cord included, works with standard electrical systems in North America
• NIST Calibrated with Certificate Included

Desco 50690 Zero Volt Benchtop Ionizer Specs:

• Brand: Desco
• SKU: 50690
• Product Type: Zero Volt Bench Top Ionizer
• Voltage Rating: 120V ac
• Material: Chassis:Aluminum
• Air Volume: 100cfm
• Air Velocity: 250fp/min
• Ozone Level: <0.05ppm
• Dimensions: 9.5 x 6 x 3.1in
• Height: 9.5in
• Width: 6in
• Depth: 3.1in
• Maximum Operating Temperature: +80°F
• Minimum Operating Temperature: +65°F
• Standards Met: ANSI/ESD S20.20, ANSI/ESD STM3.1, CSA
