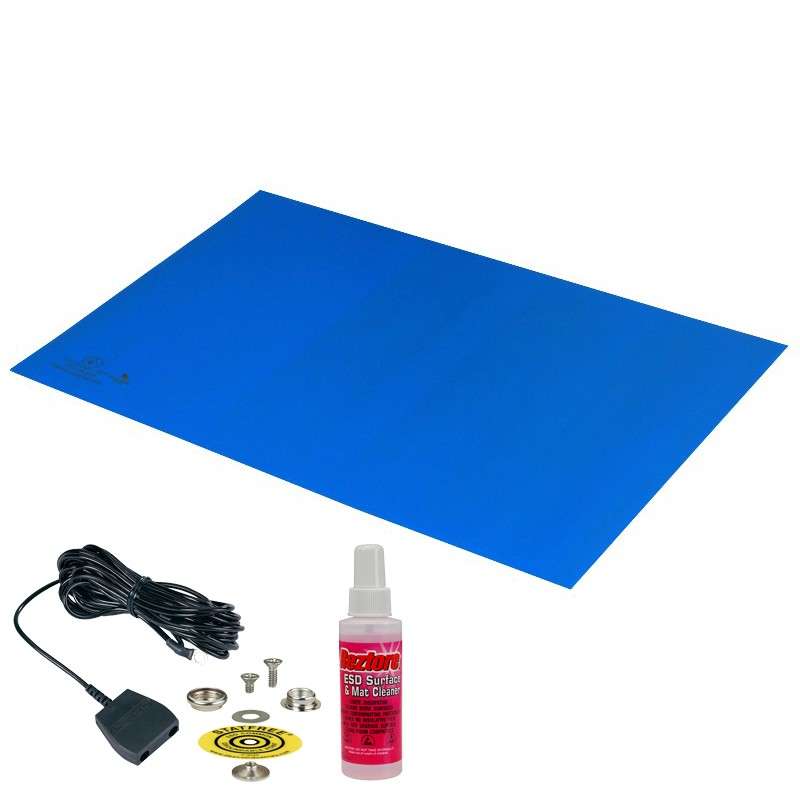

The Desco 42460 is a 24 x 36" Statfree mat top kit. The lead-free kit has laser engraved ESD protective symbol, specs, and manufacturer details marked on it. It can be used as a work surface table mat, a shelf liner, or a cart liner, and with monitors.Desco's Z2 vinyl is a heat-fused 3-layer vinyl composite with dissipative abrasion-resistant top layer. Middle layer is conductive mesh & dissipative cushioned bottom layer provides energy absorption. Desco 42460 is a .125" x 24" x 36" Blue ESD static dissipative mat including 14213 Ground Cord.

Desco 42460 Statfree Z2 3-Layer Dissipative Vinyl Worktop Mat Kit Highlights:

• Heat Fused 3-Layer Vinyl Composite
• Provides reliable path to ground and eliminates static charge generation as a
• worksurface table mat, shelf liner, and cart liner.
• Dissipative (1 x 106 < 1 x 109 ohms Rtt) Abrasion Resistant Top Layer -
• Meets ANSI/ESD S20.20 worksurface required limit and recommendation of
• ANSI/ESD S4.1 for contact with ESD susceptible items. Electricals will not drift for the life of the mat.
• Conductive (<104 Rtt) Mesh Middle Layer Bottom Layer - Limited Lifetime Warranty
• The dedicated conductive layer reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the mats to be used with monitors. Electricals will not drift for the life of the mat.
• Dissipative (1 x 106 < 1 x 109 ohms Rtt) Cushioned Bottom Layer -
• Limited Provides additional energy absorption for components susceptible to physical shock.
• Laser Engraved With ESD Protective Symbol, Specs, and Manufacturer
• Identifies ESD protective product for control & auditing purposes.

Desco 42460 Statfree Z2 3-Layer Dissipative Vinyl Worktop Mat Kit Specs:

• Brand: Desco
• SKU: 42460
• Product Type: Mat Top Kit
• Material Properties: Dissipative; Conductive
• Color: Blue
• Dimensions: 36 x 24 x 0.125in
• Length: 24.0 in., 36in
• Width: 24in, 4.0 in
• Height: 4.0 in
• Thickness: 0.125 in
• Number of Layers: 3
• Surface Texture Type: Embossed
• Decay Time: <0.01s
• Resistance Properties: Chemical Resistant
• Standards Met: RoHS, ANSI/ESD S4.1, ASTM-D412, ASTM-D624, ANSI/ESD S20.20
• Includes: 1 x Benchmat, Statfree Z2™, Size as Specific, 1 x 14213, Common
• Point Kit w/Snap, Customer Installed, 1 x Sample of Reztore Mat and Surface Cleaner
• Applications: Industrial
