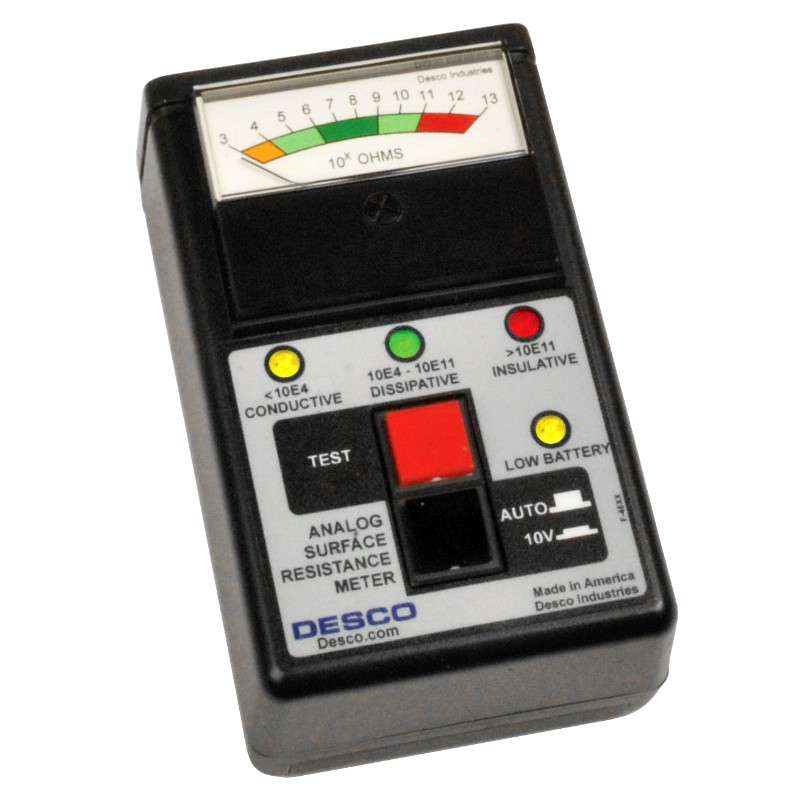

The Desco 19786 Analog Surface Resistance Meter is a portable battery-powered instrument designed to measure resistance point-to-point (RTT) and surface to ground (RTG). The meter is equipped with an automatic test voltage selector. The test voltage will switch from 10V to 100V should the measured resistance exceed 1 x 105 ohms.

Desco 19786 Analog Surface Resistance Meter Highlights:

• Analog compliance verification Surface Resistance Checker
• Used for determining if a surface is dissipative, conductive, or insulative
• Automatic test range voltage selection per compliance verification ESD TR53
• Starts tests at 10 volts and automatically switches to 100 volts if the measurement is over < 1 x 105 ohms
• Portable operation with 9V battery
• No charging or sourcing of special batteries needed
• LED illuminates when battery power is low
• Prevents operator from making bad measurements
• NIST Calibrated

Desco 19786 Analog Surface Resistance Meter Specs:

• Brand: Desco
• SKU: 19786Length: 8.0 in
• Width: 5.0 in
• Height: 1.0 in
• Package Quantity: 1PH
• For Use With: Surface Resistance Checker
