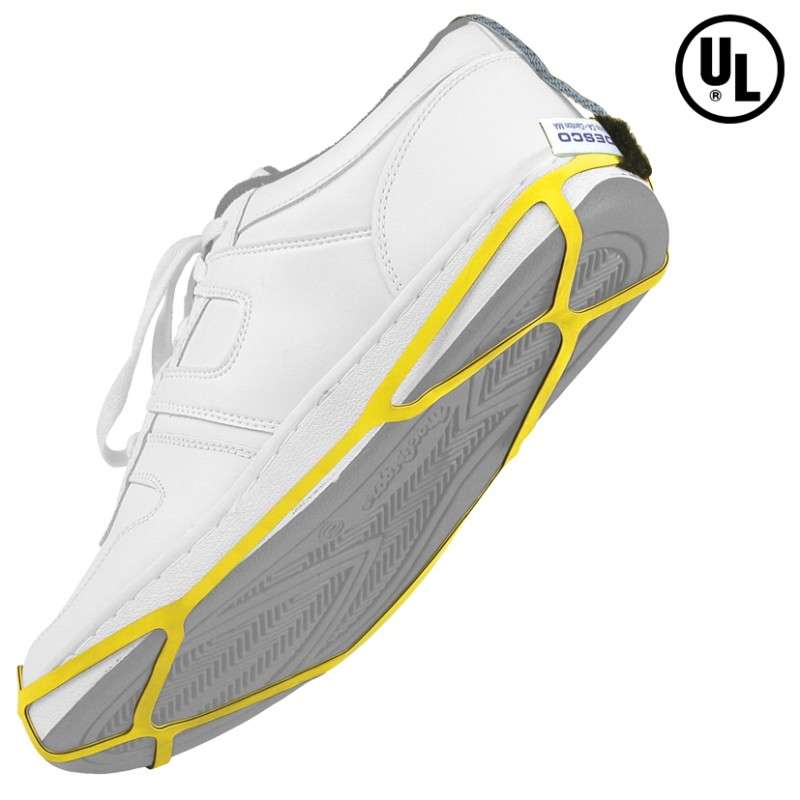

The Desco 17270 Full Coverage Foot Grounder, Non-Marring, Size Small provides contact with the ESD floor both under the foot's sole as well as the heel area, providing a more continuous and reliable path-to-ground. These foot grounders are easier to install than most foot grounders and are designed for use on standard shoes. The snug, reliable fit can be easily adjusted to fit the individual wearer. These foot grounders are made from non-marring three layer high visibility yellow reversible static dissipative rubber with a black conductive inner layer. This model is UL listed and is a suitable ESD footwear component in Flooring - Footwear System meeting ANSI/ESD S20.20 when used as the primary grounding method. It meets <3.5 x 10E7 ohms per ANSI/ESD STM 97.1 Floor Materials and Footwear-Resistance Measurement in Combination with a Person, and significantly under <100 volts tested per ANSI/ESD STM 97.2 - Floor Materials and Footwear Voltage Measurement in Combination with a Person.

Desco 17270 Full Coverage Foot Grounder Highlight:

• No fastening system required
• Flexible material that stretches over most shoes for quick and easy installation
• Contact points on sole and heel area
• Charge generation is generally lower than conventional heel straps due to the continuous path to ground throughout walking motion
• Neoprene rubber with no exposed carbon
• Will not mar shoes or floors
• 18" Long, 8 conductive strand nylon polyester grounding tab
• Additional conductive material provides reliable connection with operator's sweat-layer
• One Megohm Series Resistor protects operator from accidental contact with equipment line voltage
• UL Listed
• Rg: 1 x 106 < 1 x 109 Ohms per ESD SP9.2 7 ESD TR53
• Date coded, lot traceability to ensure quality control and tracking information

Desco 17270 Full Coverage Foot Grounder Specs:

• Brand: Desco
• SKU: 17270
• Size: Small
• Material: Rubber
• Material Category: Rubber
• Color: Yellow
• Closure Type: Buckle
• Strap Material: Nylon
• Inner Material: Rubber
• Outer Material: Rubber
• Length: 18in, 5.45 in
• Width: 0.375 in, 5.9 in
• Height: 1.05 in
• For Use With: Men:6 inch to 7 inch Shoes; Women:6 inch to 8 inch Shoes
• Standards Met: UL Listed, ANSI/ESD S20.20, ANSI/ESD STM 97.1, ANSI/ESD STM 97.2
