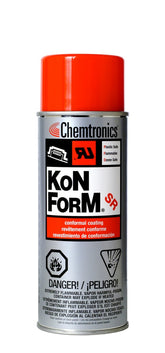

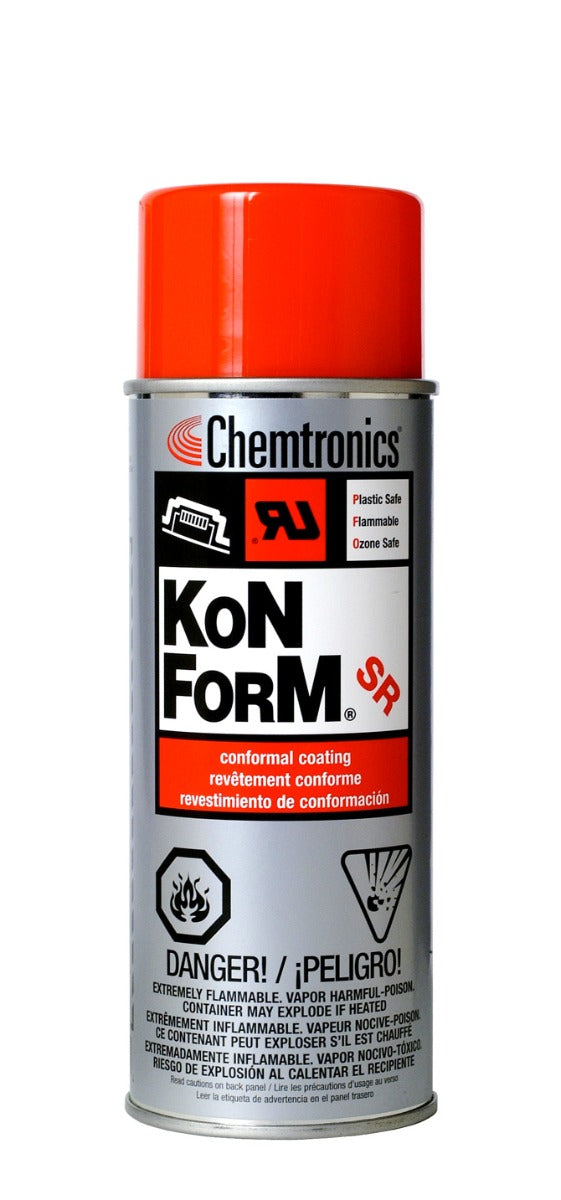

The Chemtronics CTSR-12 Konform SR provides maximum flexibility for extreme temperatures. This transparent coating provides ideal protection for both rigid and flexible printed circuit boards. Cured coatings are hydrolytically stable and retain their physical electrical properties after high temperature and humidity exposure. Konform SR will not stress delicate circuit components. This transparent silicone coating provides ideal protection for both rigid and flexible printed circuit boards. Resists moisture, salt, fungus, corrosive vapors and withstands heat generated by electronic circuitry as well as climatic temperatures. Contains a UV indicator for thorough quality control inspection.

Chemtronics CTSR-12 Konform SR Silicone Coating Highlights:

• Engineered for applications where flexibility and high temperature resistance are required
• Silicone coating stable from -85 degree farad/-64 degree Celsius to 390 degree farad/199 degree Celsius
• High dielectric strength of 1100 volts/mil
• Easily removed with electro-wash two step or circuitworks conformal coating remover pen
• Meets mil-i-46058c, type SR
• Compliant to IPC-CC-830a
• RoHS compliant
• UL recognized, file e76307
• Contains a UV indicator for quality control inspection using medium intensity light at 265-335 nm

Chemtronics CTSR-12 Konform SR Silicone Coating Specs:

• Brand: Chemtronics
• SKU: CTSR-12
• Product Type: Silicone Coating
• Viscosity: 40± 5  77°FcPs
• VOCs Content: 88%
• Minimum Operating Temperature: -85°F
• Maximum Operating Temperature: +390°F
• Length: 8.7 in
• Width: 2.7 in
• Height: 2.7 in
• Standards Met: MIL-I-46058C Type SR, IPC-CC-830A, UL Recognized File E76307, RoHS Compliant, ANSI, GHS
