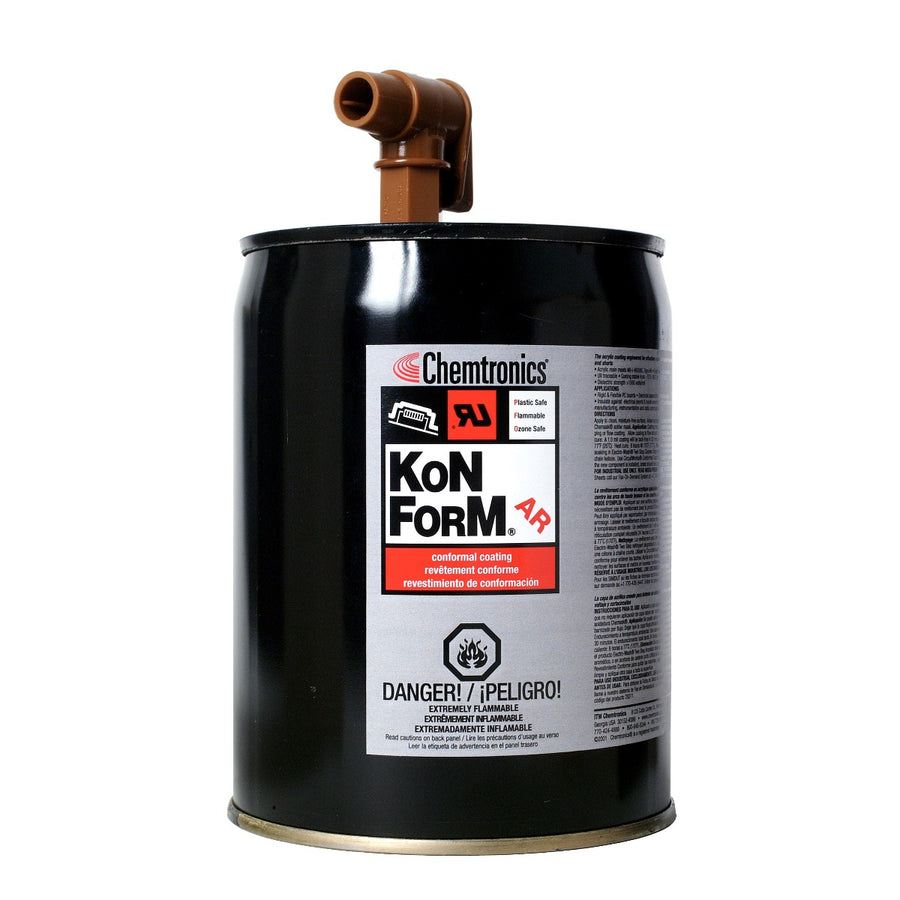

The Chemtronics CTAR-1 is a conformal coating . Konform AR is ideal for providing insulation against high-voltage arcing and corona shorts. Konform AR resin meets MIL-I-46058C, Type AR. Increases life of electronic assemblies. - This extremely effective acrylic conformal coating provides a hard, durable protective barrier against humidity, salt, corrosive vapors and fungus for printed circuit board and electronic assemblies.

Chemtronics CTAR-1 Konform AR Acrylic Coating Highlights:

• Acrylic coating working temperature from -75 degree farad/-59 degree
• Celsius to 279 degree farad/137degree celsius
• High dielectric strength of 8300 volts/mil
• Meets MIL-I-46058c, type AR
• Compliant to IPC-CC-830A
• RoHS compliant
• Provides excellent acid resistance
• Will not discolor over time under normal use
• Contains a UV indicator for thorough quality control inspection
• Easily repairable
• UL recognized, file e76307
• Standards Met: MIL-I-46058C, Type AR, UL Recognized File E76307, Compliant to IPC-CC-830A, RoHS Compliant, ANSI, GHS

Chemtronics CTAR-1 Konform AR Acrylic Coating Specs:

• Brand: Chemtronics
• SKU: CTAR-1
• Product Type: Acrylic Conformal Coating
• Viscosity: 70± 5 @ 77°FcPs
• VOCs Content: 88.9%
• Minimum Operating Temperature: -75°F
• Maximum Operating Temperature: +270°F
• Storage Conditions: COOL DRY PLACE
