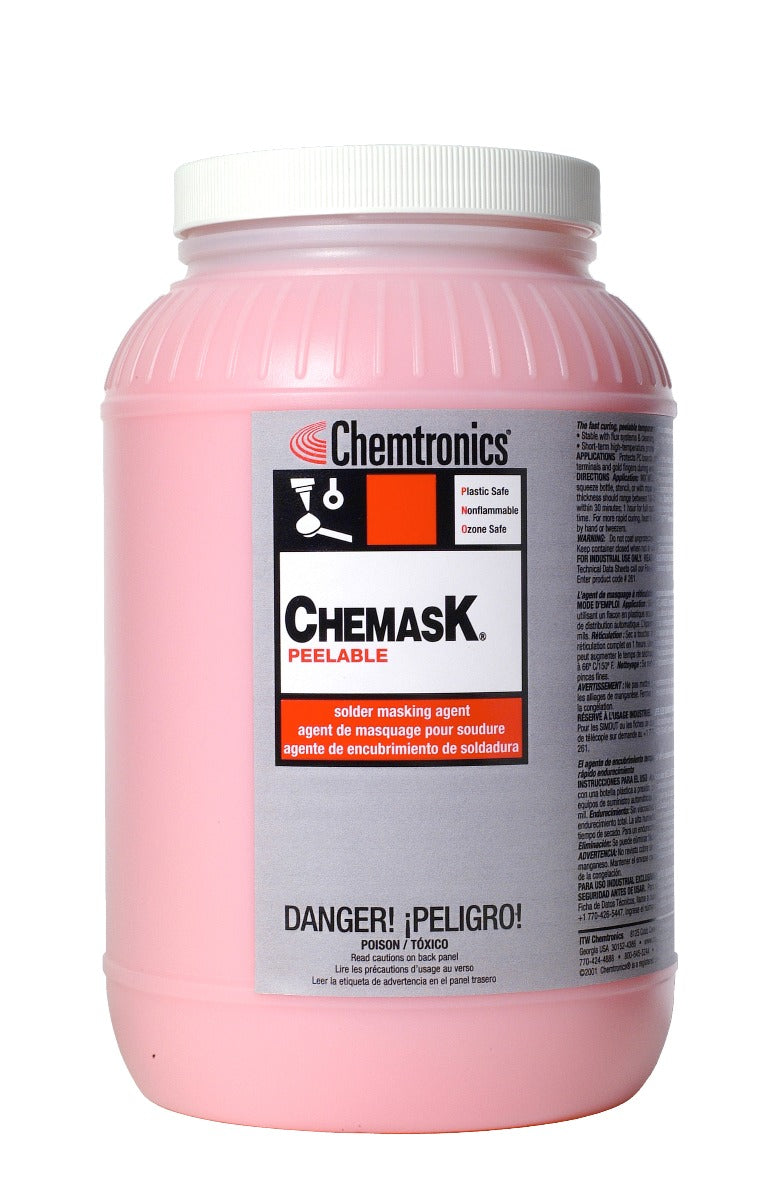

The Chemtronics CM1 is a solder mask with a primary color of pink. Chemask is a fast curing peelable solder masking agent. It contains natural latex formulated with high-temperature resistant compounds. Use Chemask to to mask off during wave solder or conformal coating processes.

Chemtronics CM1 Chemask Fast Curing Peelable Temporary Solder Masking Agent Highlights:

• Stable to 515 degree F/268 degree C
• Compatible with rosin, water soluble fluxes and cleaning solvents
• Leaves no residue
• Dries tack free in 30 minutes
• Non-contaminating
• Dries tack-free in 30 minutes
• Easy to use just peel off dried Chemask masking agent
• Latex material is compatible with flux systems and stable with cleaning solvents
• Natural latex has superior strength and elongation:can stretch to five times cured length without breaking
• Ideal for protecting contacts during wave soldering
• Use as a protective mask during conformal coating process for switches, pins, posts, contact and edge connections
  Specifications
• CM1 is a 1 Gallon bottle
• Applications: Component Free Areas, Components, Pin Connectors, Temperature Sensitive Components
• Chemical Component: Natural Latex Rubber; Methanol; Titanium Dioxide

Chemtronics CM1 Chemask Fast Curing Peelable Temporary Solder Masking Agent Specs:

• Brand: Chemtronics
• SKU: CM1
• Product Type: Solder Masking Agent
• Physical Form: Liquid
• Color: Pale Pink
• Flash Point: Nonflammable
• Cure Time: 30 min @ 77°F
• Viscosity: 20000 to 28000 @ 77°FcPs
• Container Type: Container
• Standards Met: MIL-STD-2000A, ACGIH, NIOSH, OSHA
• Capacity: 1gal
