The Alpha 115327-0001 SLS 65 was specifically developed to eliminate the tendency for solder balling and solder bridging-two defects which are normally associated with the use of the chip wave. Of all low solids (< 4% solids), no-clean fluxes, ALPHA SLS 65 exhibits the lowest tendency for solder ball generation over a wide variety of solder masks. Alpha SLS-65 should be considered for use by any assembler who has board designs which are sensitive to solder bridging, performs pin testing, and whose specification requires an extremely low frequency of solder balls. Alpha 115327-0001 SLS-65 is an active, low solids, no-clean flux. It is formulated with a proprietary mixture of organic activators. Several proprietary additives are formulated into ALPHA SLS 65 which act to reduce the surface tension between the solder mask and the solder thereby, dramatically reducing the tendency of solder ball generation. The formulation of Alpha SLS-65 is also designed to be more thermally stable thereby, reducing the occurrence of solder bridging.

Alpha 115327-0001 SLS-65 Wave Solder Flux Highlights:

• Thermally stable activators provide the lowest solder bridging in a low solids, no-clean flux
• Reduces the surface tension between solder mask and solder to provide the lowest solder ball frequency of any low solids, no-clean flux
• Very low level of non-tacky residue to reduce interference with pin testing and exhibit no visible residue
• Cleaning is not required which reduces operating costs
• Bellcore Compliant for long term electrical reliability

Alpha 115327-0001 SLS-65 Wave Solder Flux Specs:

• Brand: Alpha
• SKU: 115327-0001

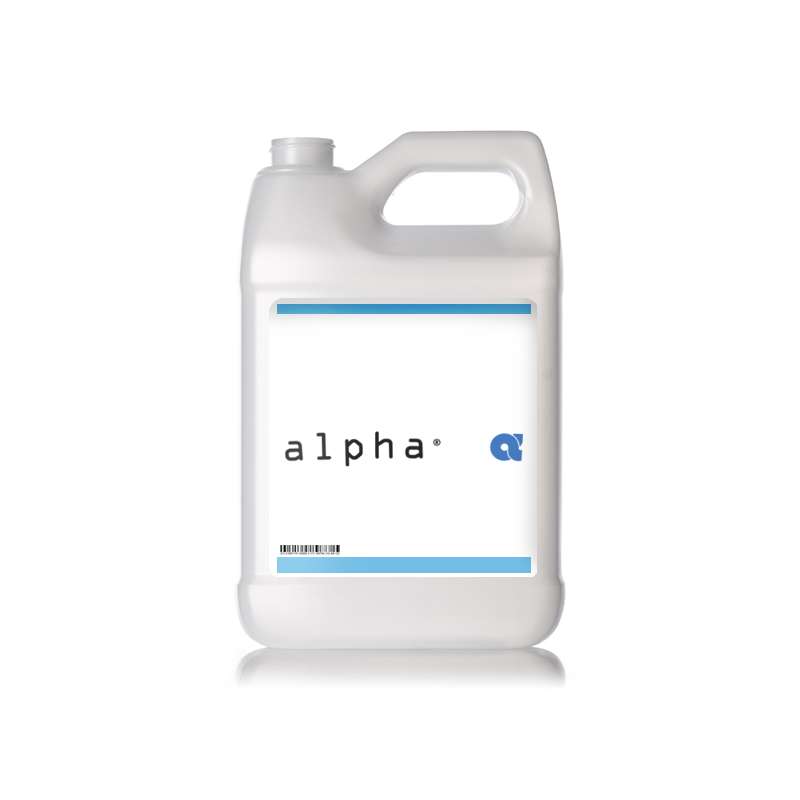

• Size: 1 gallon
• Container Type: Pail
• Color: Clear Colorless
• Applications: Soldering
• Product Type: Wave Solder Flux
