Conveyors & Boardstackers
PCB handling solutions for your entire SMT line — buffer conveyors, inspection stations, destackers, magazine loaders/unloaders, wave solder exit conveyors, and reflow ovens. All systems are fully SMEMA compatible.
Request a Quote

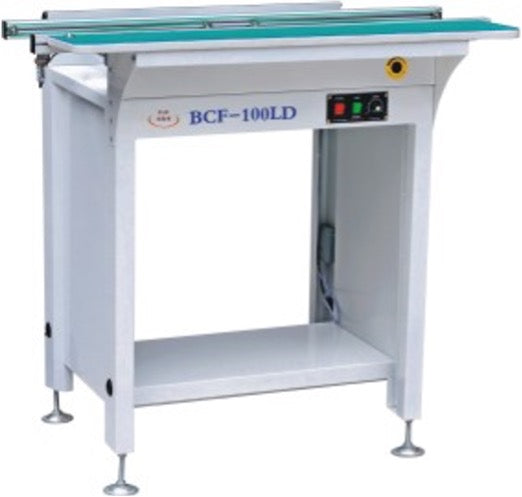

PCB Buffer Conveyor — BCF Series
PCB Buffer Conveyor for transferring PCBs between manufacturing equipment including screen printers, solder paste dispensers, SPI, AOI, pick & place, reflow ovens, and inline test. Available in standard and heavy duty configurations. Fully SMEMA compatible.
| Model | Dimensions (L×W×H) | Weight | Configuration | Price |
|---|---|---|---|---|
| BCF-50LD | 500 × 770 × 900 mm | 55 kg | Single stage belt transfer | $2,625.00 |
| BCF-60LD | 600 × 770 × 900 mm | 65 kg | Single stage belt transfer | $2,625.00 |
| BCF-100LD | 1000 × 770 × 900 mm | 70 kg | 2 stage belt transfer | $2,925.00 |
| BCF-150LD | 1500 × 770 × 900 mm | 90 kg | 3 stage belt transfer | $3,150.00 |
F.O.B. California • Specifications and pricing as of 06.2021

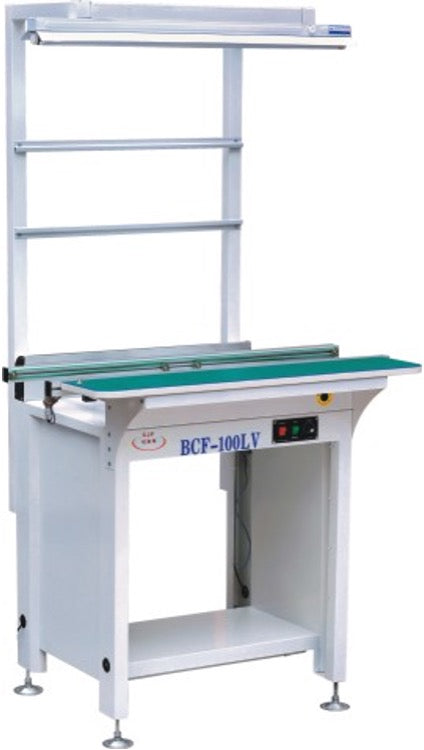

BCF-100LV Two Stage PCB Inspection Conveyor
Two stage PCB inspection conveyor with integrated LED light, document holder, and workstation. Supports both left-to-right and right-to-left transfer. Fully SMEMA compatible.
1000 × 695 × 1850 mm
Dimensions (L×W×H)
95 kg
Weight
2 Stage
Transfer Belt
F.O.B. California • Specifications and pricing as of 06.2021
DBF-460A PCB Destacker
PCB Bare Board Destacker — a stack of bare PCBs are placed in the conveyor and the destacker automatically sends individual PCBs to the first manufacturing system. Typically the screen printer or solder paste dispenser. Fully SMEMA compatible.
650 × 980 × 1250 mm
Dimensions (L×W×H)
210 kg
Weight
460 mm (18")
PCB Width
F.O.B. California • Specifications and pricing as of 06.2021
WU-120L Wave Solder Exit Conveyor
Connects directly to your wave solder exit conveyor with manual height adjustment and variable speed control. Available with or without cooling fans. ESD belt standard.
| Model | Dimensions (L×W×H) | Weight | Configuration | Price |
|---|---|---|---|---|
| WU-120L | 1200 × 950 × 900 mm | 55 kg | No cooling fans | $3,150.00 |
| WU-120LF | 1200 × 950 × 1050 mm | 70 kg | With cooling fans | $3,450.00 |
F.O.B. California • Specifications and pricing as of 06.2021
ULF-460A Magazine Unloader
Transfers completed PCBs into a PCB magazine. Fully programmable via touch screen panel. Eliminates the need for an operator to handle individual PCBs. Configurable with single or multi-magazine capability. Typical magazine capacity is ~30 PCBs. Fully SMEMA compatible.
2580 × 980 × 1200 mm
Dimensions (L×W×H)
350 kg
Weight
50×50 – 530×460 mm
PCB Dimensions
F.O.B. California • Specifications and pricing as of 06.2021
BLF-460A Magazine Loader
Transfers bare or populated PCBs to the adjacent workstation. PCBs are manually loaded into a magazine. Used in single-sided and double-sided applications. Fully programmable via touch screen with single or multi-magazine capability. ~30 PCB magazine capacity. Fully SMEMA compatible.
1850 × 980 × 1200 mm
Dimensions (L×W×H)
300 kg
Weight
50×50 – 530×460 mm
PCB Dimensions
F.O.B. California • Specifications and pricing as of 07.2021

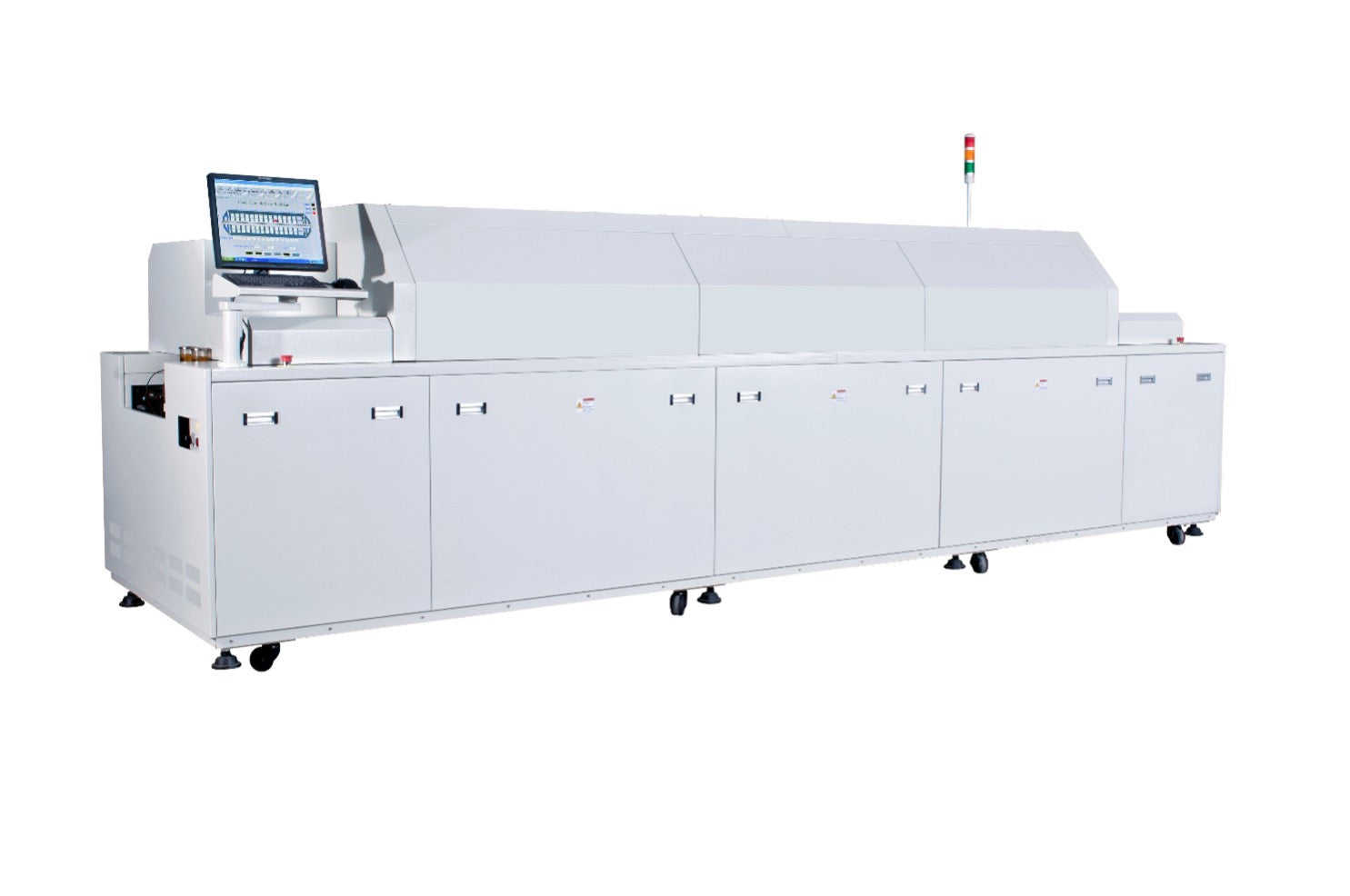

CD460-X8 Lead/Lead-Free Flat Panel Reflow Oven
PCB Reflow Oven designed for single and double sided reflow soldering. Available in 8, 10, and 12 zone configurations depending on PCB volume and complexity. Includes PCB edge rail and mesh conveyors with automatic conveyor oil process. Flux management system standard. Fully SMEMA compatible.
8 Zone
Top/Bottom Heating
2 Zone
Top/Bottom Cooling
±1°C
Temp Accuracy
18" (560 mm)
Max PCB / Mesh Width
F.O.B. California • Specifications and pricing as of 06.2021
