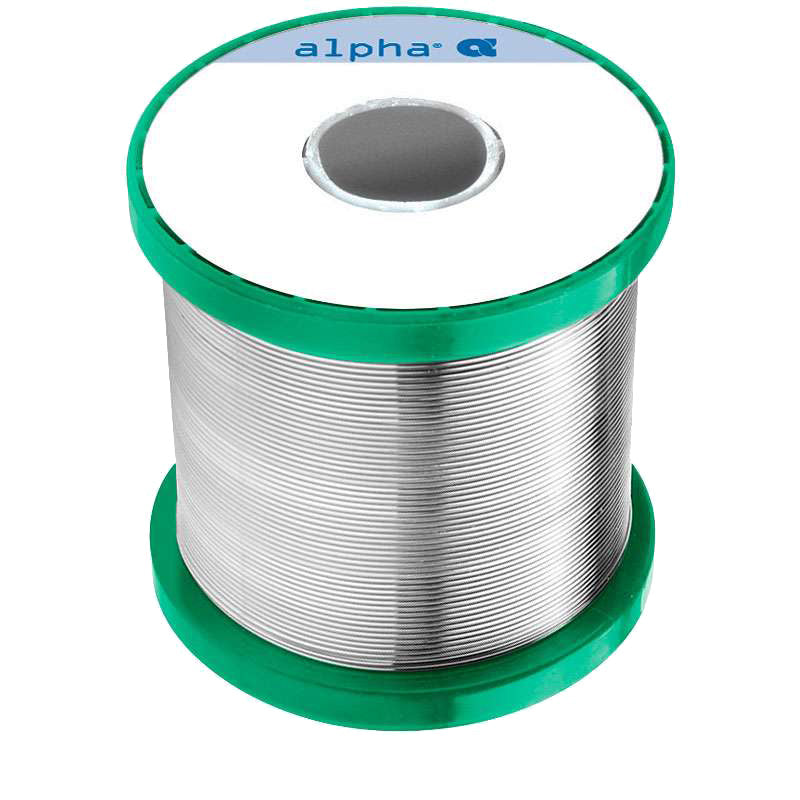

The Alpha 143090 Telecore Plus No-Clean Solder Wire is a top-of-the-line soldering wire designed to provide exceptional performance and reliability. This particular spool contains 1 pound (approximately 454 grams) of solder wire, ensuring you have an ample supply for your soldering needs.

The solder wire is made from SAC305 alloy, which is composed of 96.5% tin, 3% silver, and 0.5% copper. This composition makes it suitable for a wide range of applications, including electronics assembly, PCB soldering, and other high-quality soldering projects.

One notable feature of the Alpha 143090 solder wire is its "no-clean" formulation. This means that after soldering, the residue left behind is minimal and does not require cleaning. This saves time and effort in the soldering process, allowing you to focus on your work rather than post-soldering cleanup.

Alpha 143090 Telecore Plus No-Clean Solder Wire Highlights:

• Product Type: Cored Solder Wire
• Bellcore Compliant
• Clear, Tack-Free, Non-Corrosive Residues, High SIR
• Applications Commercial No-Clean Hand Soldering
• No Clean, Activated Rosin Flux Conforming to J-STD-004 ROL0
• Standards Met: ROL0 per IPC J-STD-004 ISO 12224 - 1.1.2, Bellcore Compliant TR-NWT-000078, J-STD-006B

Alpha 143090 Telecore Plus No-Clean Solder Wire Specs:

• Brand: Alpha
• SKU: 143090
• Color: Silver Gray
• Container Size: 1lb
• Flux Type: No Clean
• Series: Telecore Plus
• Container Type: Spool
• Wire Diameter: 0.02 in
• Minimum Melting Temperature: +217°C
• Maximum Melting Temperature: +221°C
• Chemical Composition: Sn96.5Ag3.0Cu0.5
