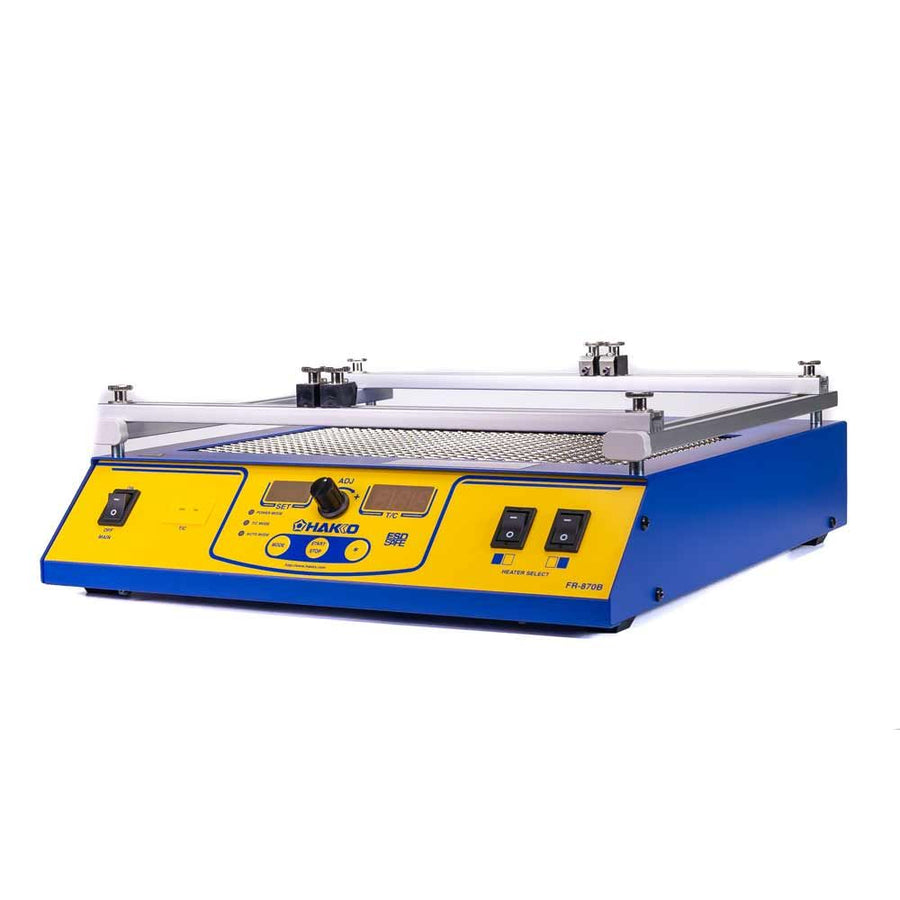

The FR-870B is a bench-top board heater designed to elevate the temperature of printed circuit board assemblies so that components on them can be soldered and de-soldered more easily, and with improved results. This is particularly useful on medium to high-mass board assemblies, which can “heat-sink” a significant amount of energy being supplied by a soldering iron tip, or handheld hot-air tool. This tool is particularly useful when soldering Pb-free assemblies.

The FR-870B is an updated replacement for the popular Hakko FR-870 IR Preheater that includes an upgrade to use the new high efficiency carbon filament lamps and the new software features found in the FR-872 4-zone IR preheater, thus allowing you to control the ramp rate at 1, 2, or 3 degrees Celsius per second when you are in one of the two thermocouple modes.

Hakko FR870B-04 PreHeater Highlights:

• Infrared Pre-Heater that provides the optimal heating effect over the whole workpiece surface
• 2 Independent switchable work grid partitions
• Infrared carbon heater
• 2 independent switchable zones
• 248 mm x 140 mm PCB capacity
• Manual or Auto modes of operation
• Preheat control by Power or Thermocouple
• Soft EPO to protect assemblies
• Small footprint and low profile
• Faster than ceramic IR heating
• Integrates with the Hakko FR-803B and FM-206
• Easy to remove reflector for cleaning and finding lost components

The Hakko FR870B-04 PreHeater Specs:

•  2 independent switchable zones
• 248 mm x 140 mm PCB capacity
• Manual or Auto modes of operation
• Preheat control by Power or Thermocouple
• Soft EPO to protect assemblies
• Small footprint and low profile
• Faster than ceramic IR heating
• Integrates with the Hakko FR-803B and FM-206
• Easy to remove reflector for cleaning and finding lost components
• HAKKO FR870B-04 IR PCBoard Preheater Specs:
