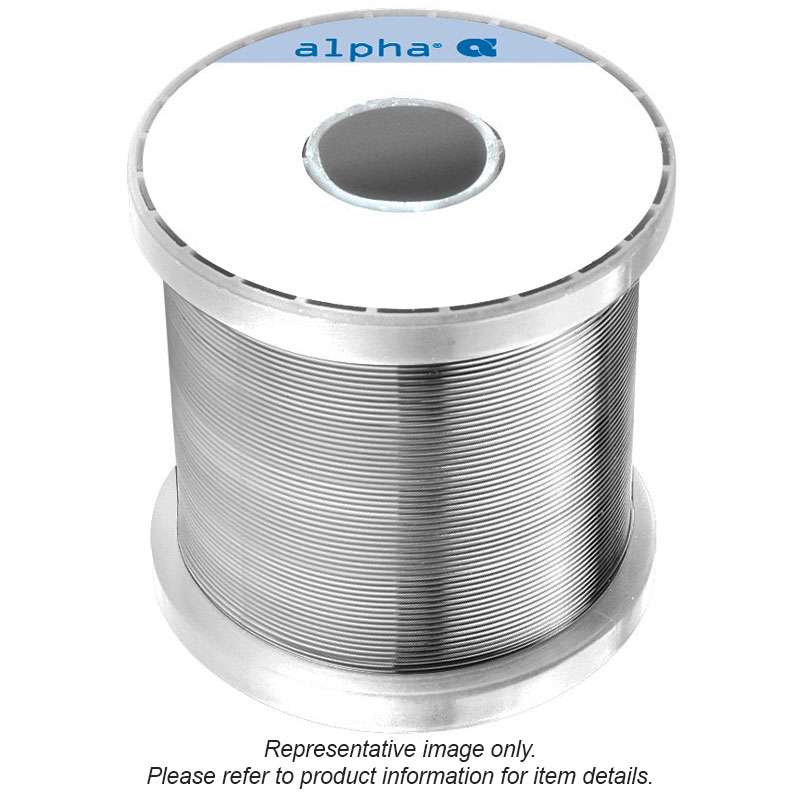

The ALPHA 110347 is an organic activated water soluble flux cored solder recommended for us in any electronic hand soldering application where high fluxing strength and the ability to clean with water are desired.

Alpha 110347 Pure Core Water-Soluble Flux Solder Wire Highlights:

• Low smoke and odor characteristics
• Suited for touch-up and repair of printed circuit boards where personnel are in close contact with product
• Can be used on a wide array of surface metals
• Contains a water soulble resin and a buffered organic activation system for bright shiny solder connections
• Effective activator system enables the flux to penetrate heavily tarnished surfaces
• Standards Met: IPC-TM-650 2.6.3.3, J-STD-006B, ORM1 per IPC J-STD-004B 2.1.2 per ISO 12224

Alpha 110347 Pure Core Water-Soluble Flux Solder Wire Specs:

• Brand: Alpha
• SKU: 110347
• Series: PURE CORE
• Chemical Composition: Sn63Pb37
• Wire Diameter: 0.03in
• Flux Type: Water Soluble
• Product Type: Cored Solder Wire
• Maximum Melting Temperature: +183°C
• Color: Silver Gray
• Container Type: Spool
• Container Size: 1lb
• Applications: Electronics Hand Soldering
• Length: 3.45 in
• Width: 3.5 in
• Height: 3.3 in
